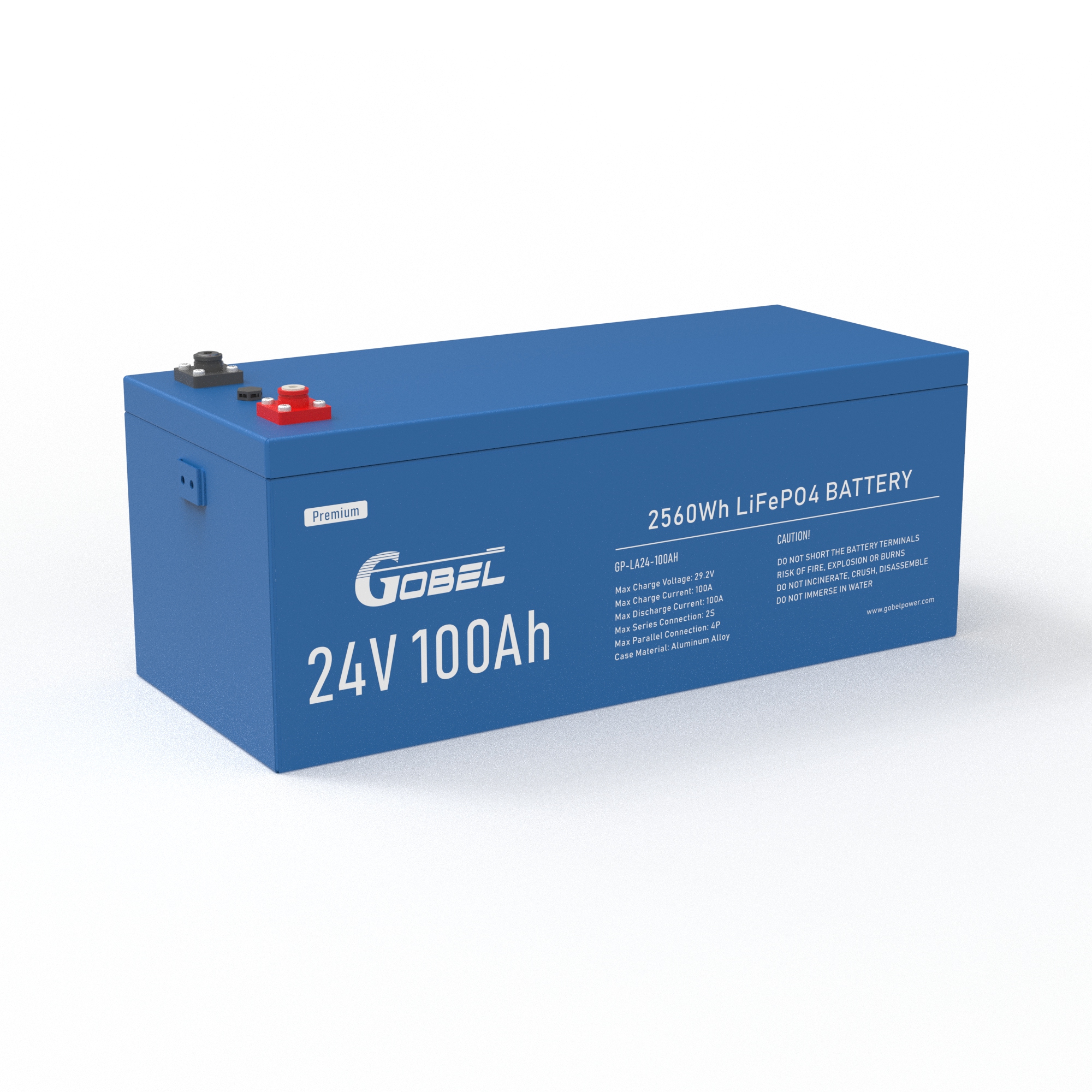

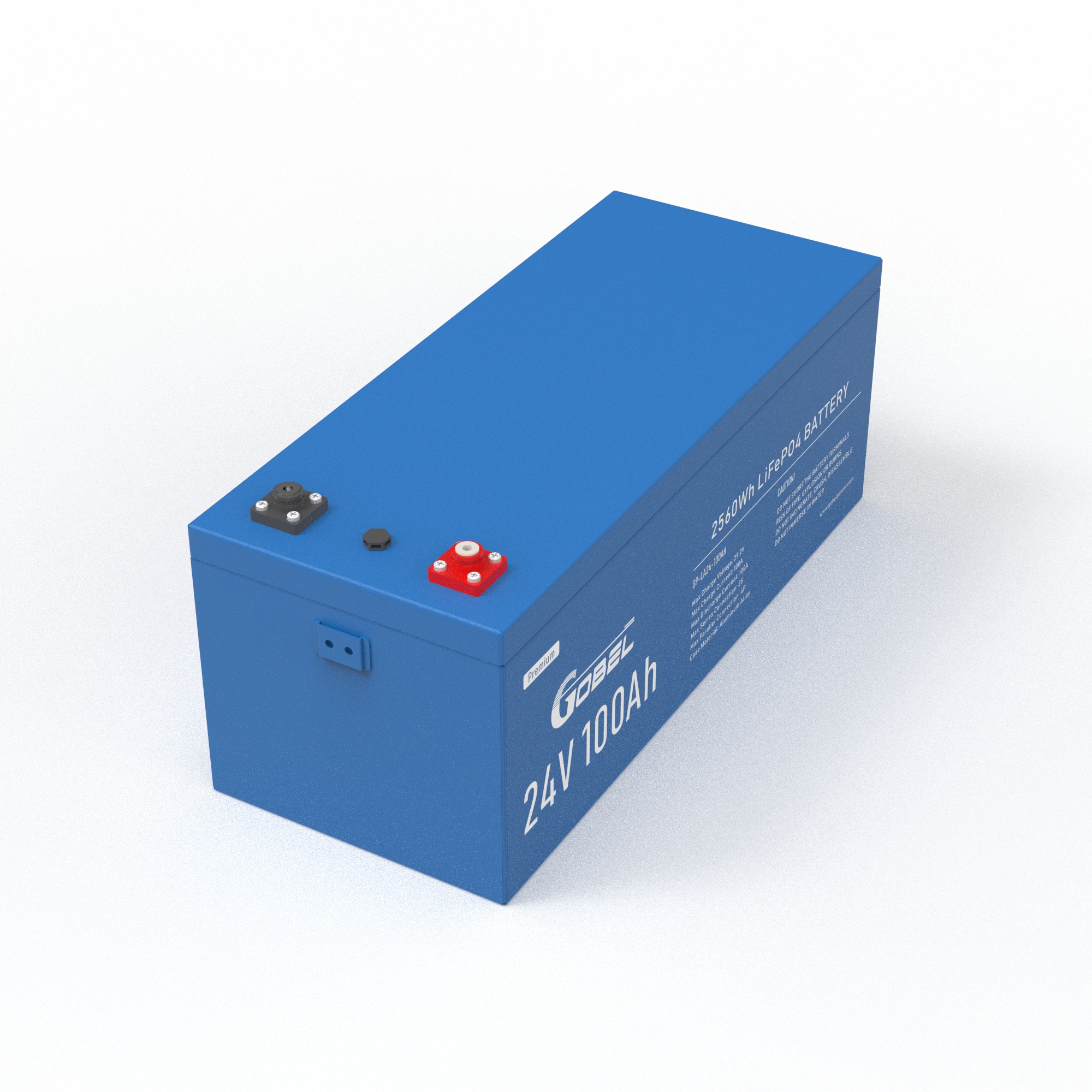

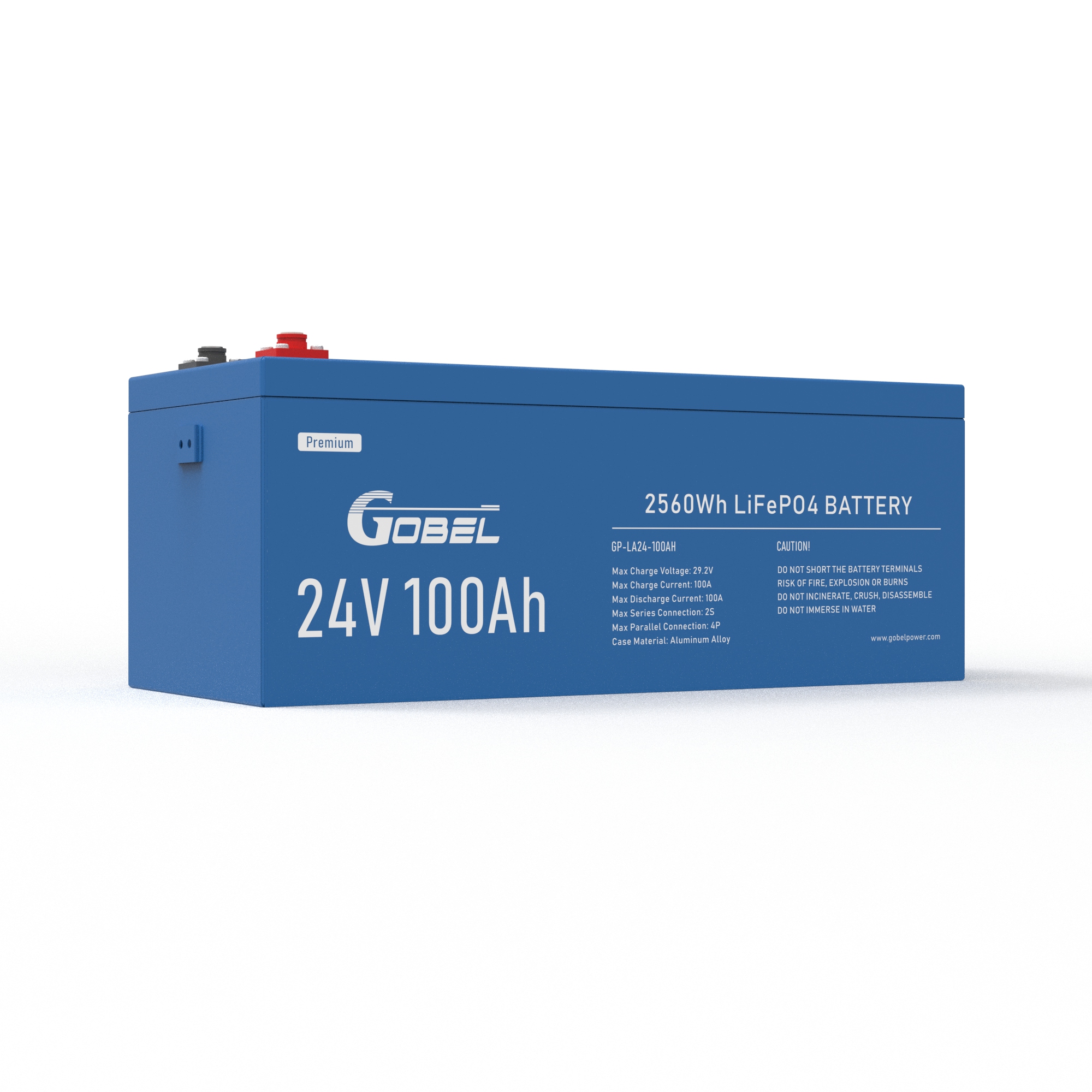

Gobel Power GP-LA24-100AH · 25.6V 100Ah 2.56kWh
GP-LA24-100AH 25.6V 100Ah 2.56kWh Premium LiFePO4 Battery
Engineered with an ultra-rugged Aluminum Alloy enclosure, premium EVE Grade LF100L cells, and integrated Bluetooth BMS. Features IPX6 waterproof protection and flexible expansion up to 20kWh (2P4S) for demanding off-grid, RV, marine, and solar power applications.
| 2.56 kWhUsable Energy | 25.6V / 100AhVoltage & Capacity | IPX6Waterproof Rating | Up to 20kWhScalable System |
Rugged Construction & High Efficiency
Aluminum Alloy Shell & IPX6 Waterproof Protection
Built inside a lightweight and heavy-duty aluminum alloy casing, the GP-LA24-100AH provides superior heat dissipation and structural strength compared to standard plastic cases.
Aluminum Alloy Case: Premium metal construction offering enhanced durability, structural protection, and efficient thermal dissipation.
IPX6 Enclosure Rating: Excellent water and dust resistance, making it suitable for marine, outdoor RV, and harsh environments.
Compact & Portable (20 kg): Optimized 466 × 192 × 195 mm form factor with included lifting strap for easy handling and installation.
EVE Grade Cells, Smart BMS & Bluetooth Monitoring
Powered by premium EVE HSEV Grade LF100L cells and the custom GP-PC8S100A BMS, delivering exceptional safety, energy efficiency (≥95%), and real-time mobile monitoring.
Programmatic Cell Sorting: Precise cell matching guarantees high consistency, superior efficiency, and extended module life.
Built-in Bluetooth: Effortlessly check real-time voltage, SOC, temperature, and BMS protection status right from your smartphone.
Low Temperature Charge Protection: Intelligent BMS safety algorithms prevent cold-temperature charging damage to ensure battery longevity.
Series & Parallel Expansion Up to 20kWh (2P4S)
Designed with flexible series connection capability to build higher voltage battery banks (up to 48V / 51.2V nominal systems).
Supports Series Up to 48V: Easily connect two modules in series to create a 48V (51.2V) energy storage system.
Scalable Up to 20kWh: Combine up to 8 modules in a 2P4S configuration to construct a large-capacity off-grid battery bank.
Continuous 100A Output: Supports continuous 100A charging and 100A discharging, delivering up to 2560W continuous power per pack.
Versatile Applications for Marine, RV & Solar
Compatible with on-grid, grid-tied backup, and complete off-grid solar inverters.
Marine & Trolling Motors: IPX6 water resistance and aluminum shell make it ideal for boats, yachts, and 24V trolling motor setups.
RV & Mobile Living: Compact 20kg weight with lifting strap for easy mounting in campervans, motorhomes, and trailers.
Off-Grid Solar & Emergency Backup: Seamless integration with 24V and 48V solar inverters for continuous energy independence.
Technical Specifications
|
Product Model |
Gobel Power GP-LA24-100AH |
|
Nominal Energy / Capacity |
2.56 kWh / 100Ah |
|
Nominal Voltage / Operating Voltage |
25.6 VDC (22.0V – 27.6V) |
|
Cell Technology & Model |
Lithium Iron Phosphate (Cobalt-Free) | EVE HSEV Grade LF100L |
|
Max Charge & Discharge Current |
100A Max Charge / 100A Max Discharge |
|
BMS & Communication |
GP-PC8S100A BMS with Bluetooth Monitoring |
|
Round-Trip Efficiency |
≥ 95% |
|
Scalability & Expansion |
Up to 8 Modules in 2P4S Configuration (Max 20 kWh) |
|
Case Material & Protection |
Aluminum Alloy Case | IPX6 Waterproof Rating |
|
Dimensions & Weight |
466L × 192W × 195H mm | Weight: 20 kg |
|
Operating Temperature |
-20°C to +50°C (Low temperature charge protection built-in) |
|
Certification & Warranty |
UN38.3 Certified | 5 Years Limited Warranty |
Upgrade to Premium 2.56kWh Aluminum Shell Power
Get durable, high-efficiency energy storage with Bluetooth monitoring and IPX6 weather protection. Contact Gobel Power today for bulk inquiries and technical assistance.
