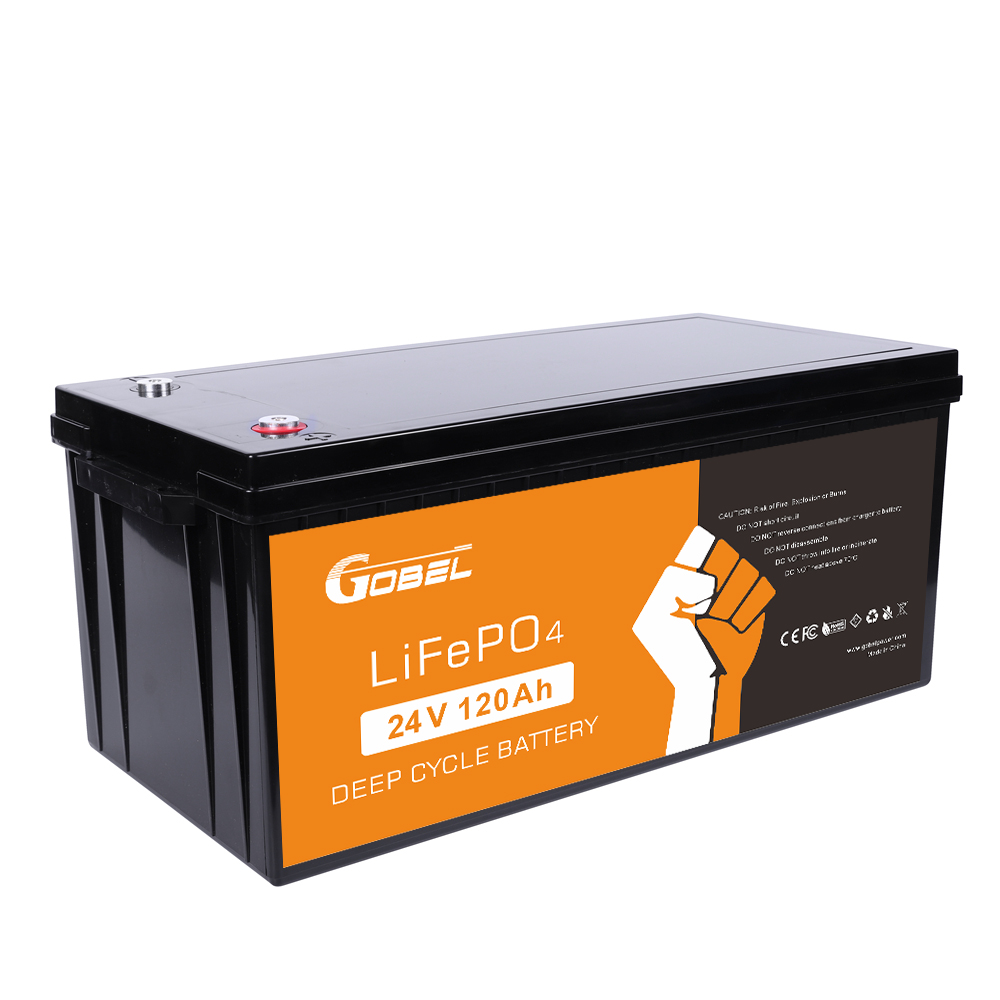

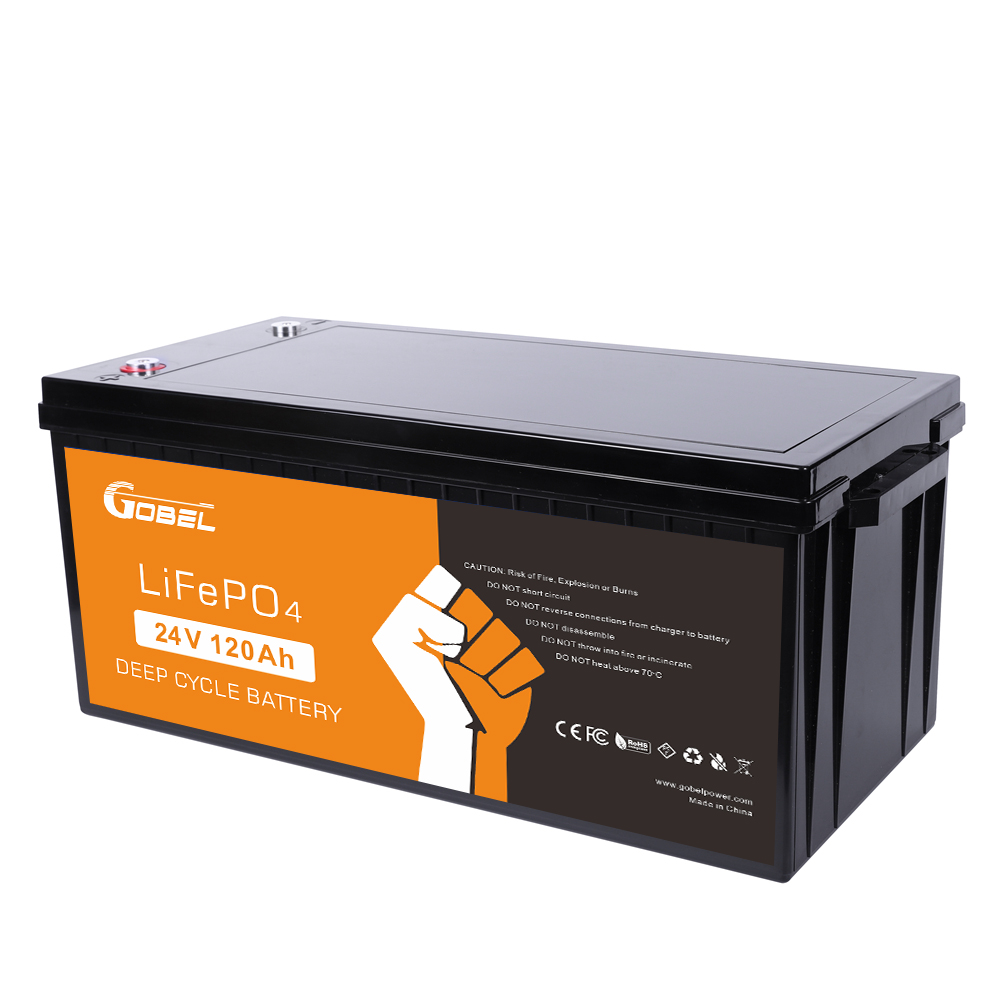

Gobel Power GP-24120 25.6V 120Ah 3.07kWh LiFePO4 Battery Pack - Deep Cycle Solar Battery with Built-in BMS, ABS Case, 4000+ Cycles for RV, Marine, Off-Grid Solar

Model Number:
GP-24120
Case Material:
ABS
Nominal Capacity:
120Ah
Nominal Voltage:
25.6V
Size:
522*240*218mm
Weight:
28kg
Working temperature:
-20~70℃
EU & US Local Warehouses
Fast DDP delivery in 3-7 days
Up to 10-Year Warranty
Industry-leading coverage, 6000+ cycles
Certified Safety
CE / UN38.3 / MSDS certified
Product Introduction
  Gobel Power GP-24120 · 25.6V 120Ah 3.07kWh

GP-24120 25.6V 120Ah 3.07kWh Deep Cycle LiFePO4 Battery

Engineered for high-reliability 24V energy storage with a durable ABS enclosure, premium cobalt-free LiFePO4 cells, and an integrated smart BMS. Delivering a continuous 3.07kWh energy capacity for RV, marine, trolling motor, and off-grid solar energy storage systems.

3.07 kWhUsable Energy25.6V / 120AhVoltage & Capacity100AMax Discharge4,000+Cycle Lifespan
High Capacity & Energy Density

3.07kWh 24V Native Output in a Compact 28kg Design

The Gobel Power GP-24120 provides a native 25.6V nominal voltage output, making it the perfect upgrade for 24V solar inverters and marine trolling motors without needing complex series connections.

  • Native 25.6V System: Eliminates the imbalance risks of stringing two 12V batteries in series, improving system stability and efficiency.

  • High Round-Trip Efficiency: High energy conversion rate (≥90%) ensures minimal power loss during charging and discharging.

  • Durable ABS Case: Sealed flame-retardant ABS housing provides rugged protection against vibration and moisture in outdoor environments.

Built-in Intelligent BMS & Comprehensive Safety Testing

Equipped with an advanced internal Battery Management System (BMS) that monitors cell status in real time to prevent overcharging, over-discharging, and current surges.

  • Automated Protection: Safeguards cells against overvoltage (3.8V±30mV), undervoltage (2.3V±80mV), short circuit, and thermal anomalies.

  • Continuous 100A Rating: Supports continuous 100A charging and 100A discharging to easily power 2000W+ inverters and high-power appliances.

  • Strict Safety Testing: Verified through drop, short-circuit, crush, thermal runaway, and low-pressure testing with zero explosion or fire risk.

Long Service Lifespan with 4,000+ Deep Cycles

Engineered with premium LiFePO4 cell chemistry that far outlasts lead-acid batteries, delivering long-term cost-efficiency for off-grid power systems.

  • 4,000+ Cycle Life: Retains 80% nominal capacity after 4,000 deep cycles, offering over 10 years of reliable daily operation.

  • Low Self-Discharge: Maintains energy retention ≥90% during storage, minimizing capacity loss when idling.

  • Wide Working Temperature: Delivers robust discharge performance from -20°C up to 60°C in demanding outdoor conditions.

Versatile Applications for 24V Off-Grid & Mobile Power Systems

Ideal for 24V battery bank applications across RVs, marine vessels, solar storage, and back-up power solutions.

  • 24V RV & Marine Setup: Power high-efficiency 24V air conditioners, refrigeration, and electronics in motorhomes and boats.

  • 24V Trolling Motors: Direct plug-and-play power supply for 24V electric trolling motors and marine electronics.

  • Off-Grid Solar Storage: Ideal house battery bank for 24V off-grid solar cabins, remote telecommunications, and emergency back-up.

Technical Specifications

Product ModelGobel Power GP-24120
Nominal Energy / Usable Capacity3.07 kWh
Nominal Voltage / Operating Range25.6 VDC (20.0V – 28.4V)
Nominal Capacity & Cell Type120Ah LiFePO4 (Lithium Iron Phosphate)
Max Continuous Charge Current100A
Max Continuous Discharge Current100A
Internal Resistance<80 mΩ (AC at 1000Hz)
Cycle Life & Energy Efficiency≥4,000 Cycles @ 80% DOD | ≥90% Energy Efficiency
Enclosure Material & DimensionsABS Case | 522mm x 240mm x 218mm (Weight: 28kg)
Operating Temperature RangeCharge: 0°C to 55°C | Discharge: -20°C to 60°C
Warranty Support2 Years Manufacturer Warranty

Upgrade Your 24V System with 3.07kWh Deep Cycle Power

Take full control of your power independence with the GP-24120 battery. Contact the Gobel Power team today for bulk quotes, shipping assistance, and system integration support.
